1. 规划

2. 服务部署

2.1 kafka-01

• 登录10.10.xxx.199，创建目录 kafka-01，进入该目录
• 目录下创建docker-compose.yml 文件

version: "3" services:    kafka:      image: 'bitnami/kafka:3.7.0'      user: root      ports:        - '9092:9092'        - '9093:9093'      environment:        - TZ=Asia/Shanghai        - KAFKA_CFG_PROCESS_ROLES=broker,controller        - BITNAMI_DEBUG=true         - ALLOW_PLAINTEXT_LISTENER=no        - KAFKA_CFG_CONTROLLER_LISTENER_NAMES=CONTROLLER        - KAFKA_CFG_NUM_PARTITIONS=1        - KAFKA_CFG_LISTENERS=INTERNAL://:9094,CLIENT://:9095,CONTROLLER://0.0.0.0:9093,EXTERNAL://0.0.0.0:9092        - KAFKA_CFG_ADVERTISED_LISTENERS=INTERNAL://10.10.181.199:9094,CLIENT://:9095,EXTERNAL://10.10.181.199:9092        - KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=INTERNAL:SASL_PLAINTEXT,CLIENT:SASL_PLAINTEXT,CONTROLLER:PLAINTEXT,EXTERNAL:SASL_PLAINTEXT           - KAFKA_CFG_INTER_BROKER_LISTENER_NAME=INTERNAL        - KAFKA_CFG_SASL_MECHANISM_INTER_BROKER_PROTOCOL=PLAIN        - KAFKA_CFG_SASL_ENABLED_MECHANISMS=PLAIN        - KAFKA_CLIENT_USERS=liubei        - KAFKA_CLIENT_PASSWORDS=liubei@161        - KAFKA_INTER_BROKER_USER=liuwei        - KAFKA_INTER_BROKER_PASSWORD=liubei@161        - KAFKA_CFG_NODE_ID=1        - KAFKA_CFG_CONTROLLER_QUORUM_VOTERS=1@10.10.181.199:9093,2@10.10.181.198:9093,3@10.10.181.197:9093        - KAFKA_KRAFT_CLUSTER_ID=xishu        - KAFKA_OPTS=-Djava.security.auth.login.config=/bitnami/kafka/data/kafka_server_jaas.conf      volumes:        - ./data:/bitnami/kafka/data:rw

2.2 kafka-02

• 登录10.10.xxx.198，创建目录 kafka-02，进入该目录
• 目录下创建docker-compose.yml 文件

version: "3" services:    kafka:      image: bitnami/kafka:3.7.0'      user: root      ports:        - '9092:9092'        - '9093:9093'      environment:        - TZ=Asia/Shanghai        - KAFKA_CFG_PROCESS_ROLES=broker,controller        - BITNAMI_DEBUG=true         - ALLOW_PLAINTEXT_LISTENER=no        - KAFKA_CFG_CONTROLLER_LISTENER_NAMES=CONTROLLER        - KAFKA_CFG_NUM_PARTITIONS=1        - KAFKA_CFG_LISTENERS=INTERNAL://:9094,CLIENT://:9095,CONTROLLER://0.0.0.0:9093,EXTERNAL://0.0.0.0:9092        - KAFKA_CFG_ADVERTISED_LISTENERS=INTERNAL://10.10.181.198:9094,CLIENT://:9095,EXTERNAL://10.10.181.198:9092        - KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=INTERNAL:SASL_PLAINTEXT,CLIENT:SASL_PLAINTEXT,CONTROLLER:PLAINTEXT,EXTERNAL:SASL_PLAINTEXT           - KAFKA_CFG_INTER_BROKER_LISTENER_NAME=INTERNAL        - KAFKA_CFG_SASL_MECHANISM_INTER_BROKER_PROTOCOL=PLAIN        - KAFKA_CFG_SASL_ENABLED_MECHANISMS=PLAIN        - KAFKA_CLIENT_USERS=liubei        - KAFKA_CLIENT_PASSWORDS=liubei@161        - KAFKA_INTER_BROKER_USER=liuwei        - KAFKA_INTER_BROKER_PASSWORD=liubei@161        - KAFKA_CFG_NODE_ID=2        - KAFKA_CFG_CONTROLLER_QUORUM_VOTERS=1@10.10.181.199:9093,2@10.10.181.198:9093,3@10.10.181.197:9093        - KAFKA_KRAFT_CLUSTER_ID=xishu        - KAFKA_OPTS=-Djava.security.auth.login.config=/bitnami/kafka/data/kafka_server_jaas.conf      volumes:        - ./data:/bitnami/kafka/data:rw

2.3 kafka-03

• 登录10.10.xxx.197，创建目录 kafka-03，进入该目录
• 目录下创建docker-compose.yml 文件

version: "3" services:    kafka:      image: bitnami/kafka:3.7.0'      user: root      ports:        - '9092:9092'        - '9093:9093'      environment:        - TZ=Asia/Shanghai        - KAFKA_CFG_PROCESS_ROLES=broker,controller        - BITNAMI_DEBUG=true         - ALLOW_PLAINTEXT_LISTENER=no        - KAFKA_CFG_CONTROLLER_LISTENER_NAMES=CONTROLLER        - KAFKA_CFG_NUM_PARTITIONS=1        - KAFKA_CFG_LISTENERS=INTERNAL://:9094,CLIENT://:9095,CONTROLLER://0.0.0.0:9093,EXTERNAL://0.0.0.0:9092        - KAFKA_CFG_ADVERTISED_LISTENERS=INTERNAL://10.10.181.197:9094,CLIENT://:9095,EXTERNAL://10.10.181.197:9092        - KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=INTERNAL:SASL_PLAINTEXT,CLIENT:SASL_PLAINTEXT,CONTROLLER:PLAINTEXT,EXTERNAL:SASL_PLAINTEXT           - KAFKA_CFG_INTER_BROKER_LISTENER_NAME=INTERNAL        - KAFKA_CFG_SASL_MECHANISM_INTER_BROKER_PROTOCOL=PLAIN        - KAFKA_CFG_SASL_ENABLED_MECHANISMS=PLAIN        - KAFKA_CLIENT_USERS=liubei        - KAFKA_CLIENT_PASSWORDS=liubei@161        - KAFKA_INTER_BROKER_USER=liuwei        - KAFKA_INTER_BROKER_PASSWORD=liubei@161        - KAFKA_CFG_NODE_ID=2        - KAFKA_CFG_CONTROLLER_QUORUM_VOTERS=1@10.10.181.199:9093,2@10.10.181.198:9093,3@10.10.181.197:9093        - KAFKA_KRAFT_CLUSTER_ID=xishu        - KAFKA_OPTS=-Djava.security.auth.login.config=/bitnami/kafka/data/kafka_server_jaas.conf      volumes:        - ./data:/bitnami/kafka/data:rw

2.4 启动服务

• 每台服务器上执行

docker-compose up -d

3. 测试

3.1 kafkamap搭建（测试工具）

• 登录10.10.xxx.199，创建kafkamap目录，进入该目录
• 创建docker-compose.yml文件如下

version: "3" services:    kafka_map:      image: dushixiang/kafka-map:latest      environment:        - DEFAULT_USERNAME=liubei        - DEFAULT_PASSWORD=liubei@161      ports:        - '8080:8080'

3.2 测试

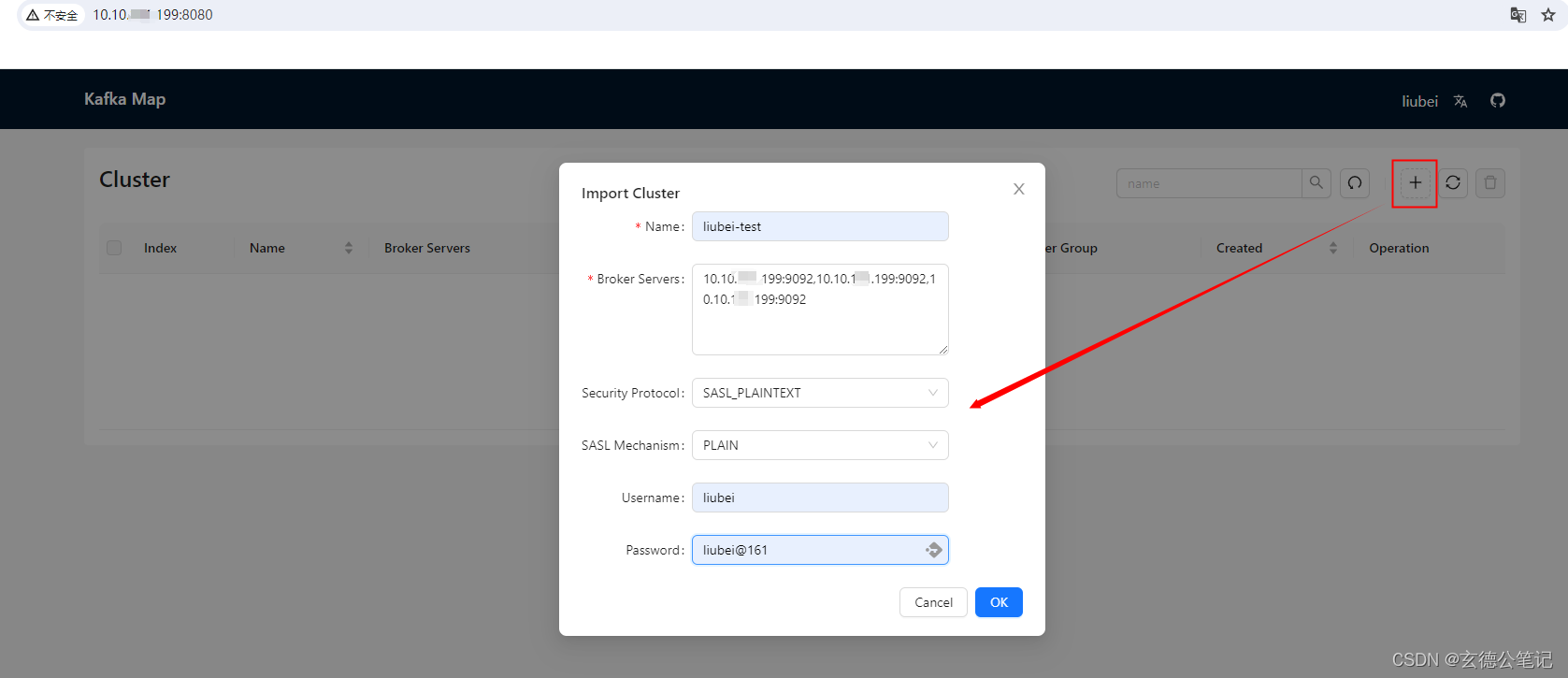

• 连接集群

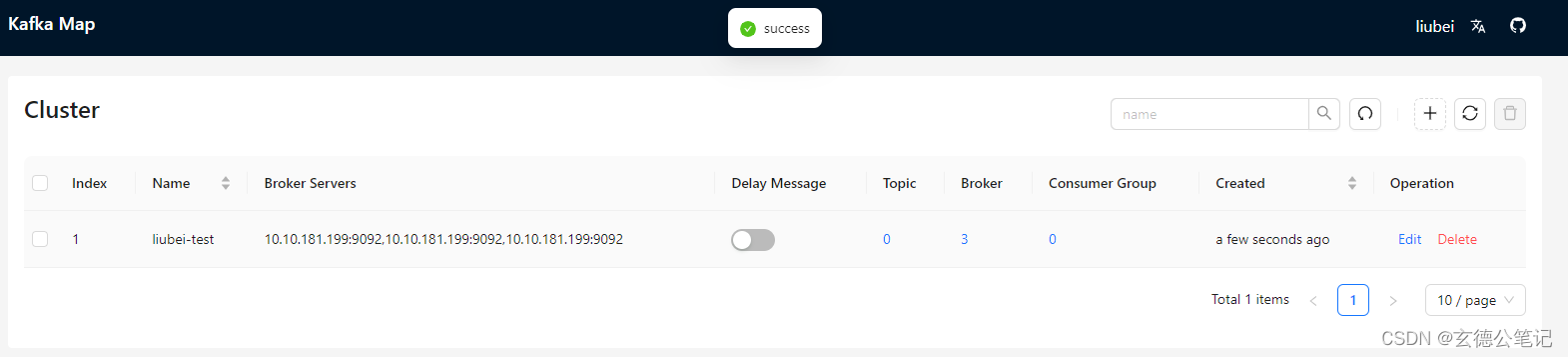

• 连接成功

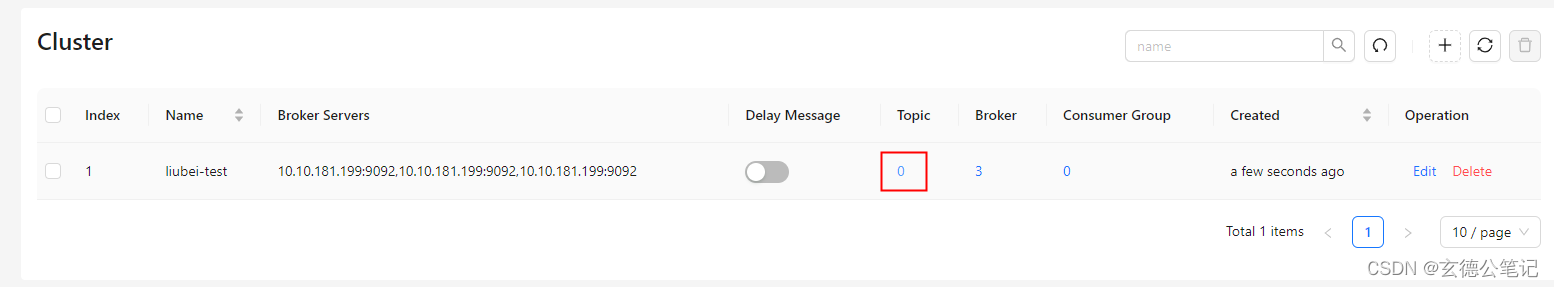

• 进入topic

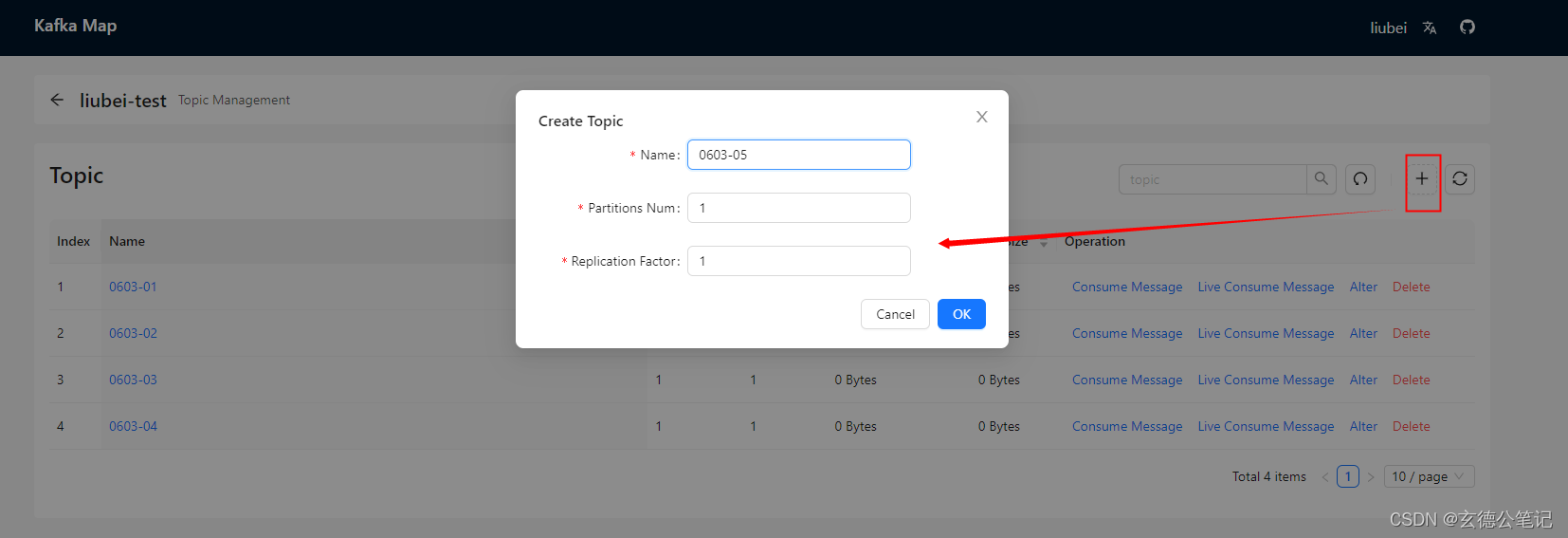

• 创建topic
