推荐esp教程网站：esp教程网站 ，纯英文，需魔法上网。

1、环境搭建

1.1 下载Arduino

        Arduino官网：Software | Arduino

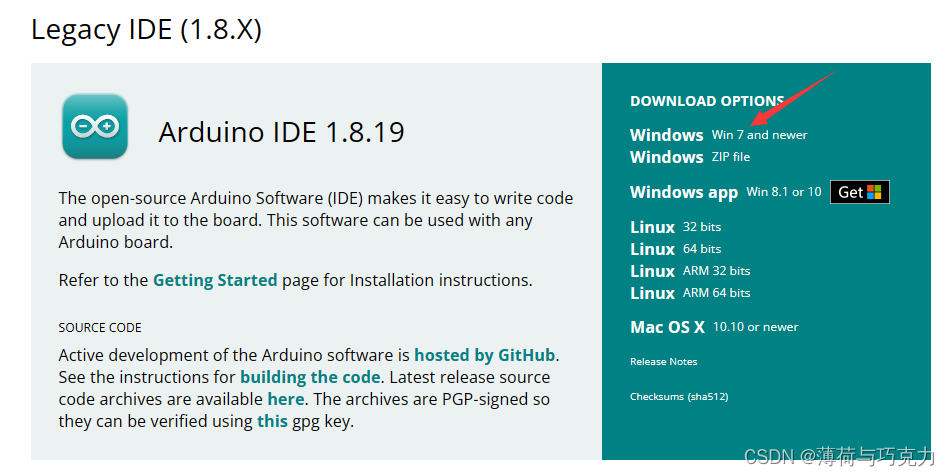

        建议下载1.8.x版本，不推荐下载2.x版本，1.8.x版本可以使用插件，但是2.x版本有代码补充。

        点击后，会弹出两个网页，都选择 JUST DOWNLOAD 。

​

1.2 下载开发板

        安装包下载好后直接按步骤安装，安装好Arduino后先添加索引。若是英文可选择切换成中文

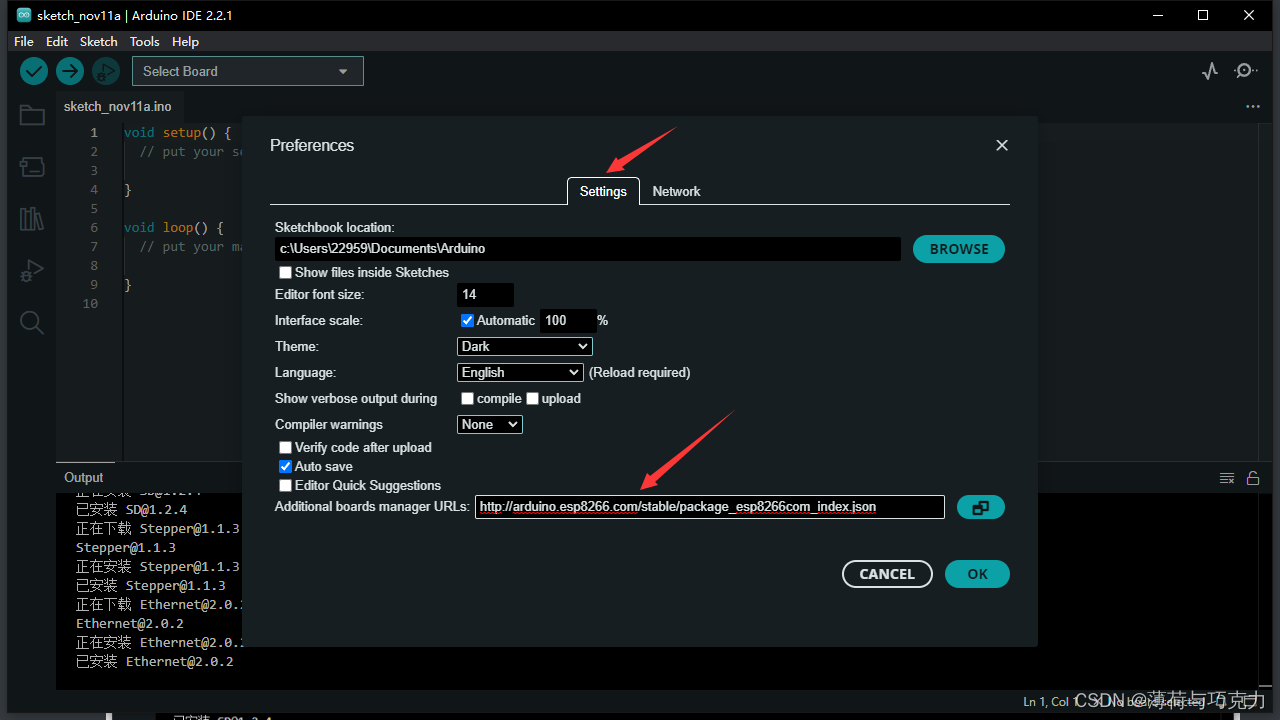

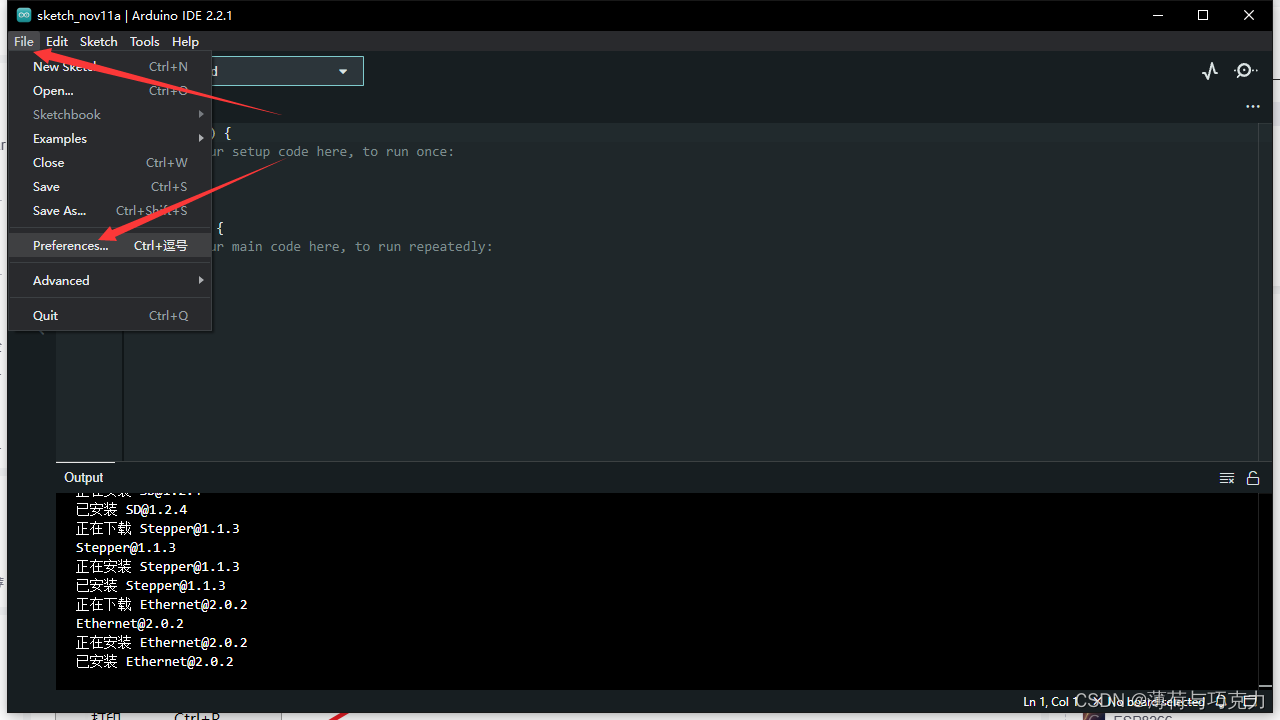

文件(file) --> 首选项(Preferences) --> 设置(settings) --> Language 选择中文， --> 最下面的URL复制进去

http://arduino.esp8266.com/stable/package_esp8266com_index.json https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json

​

​

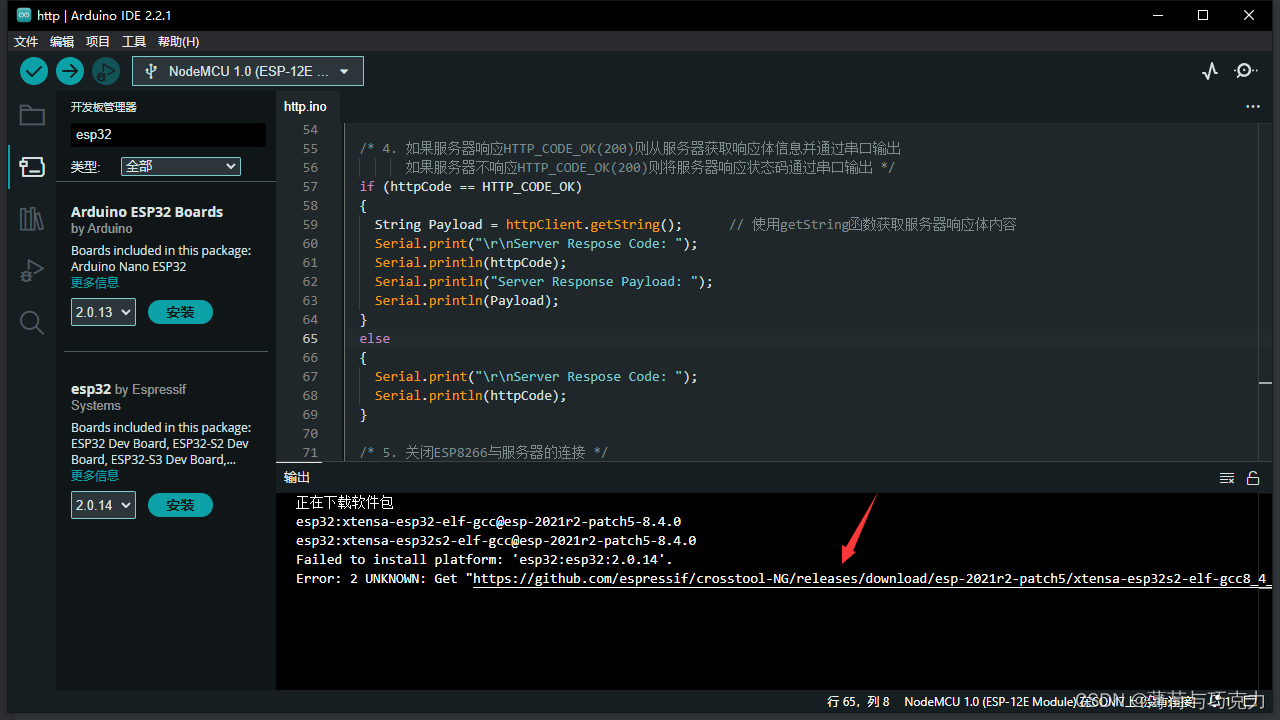

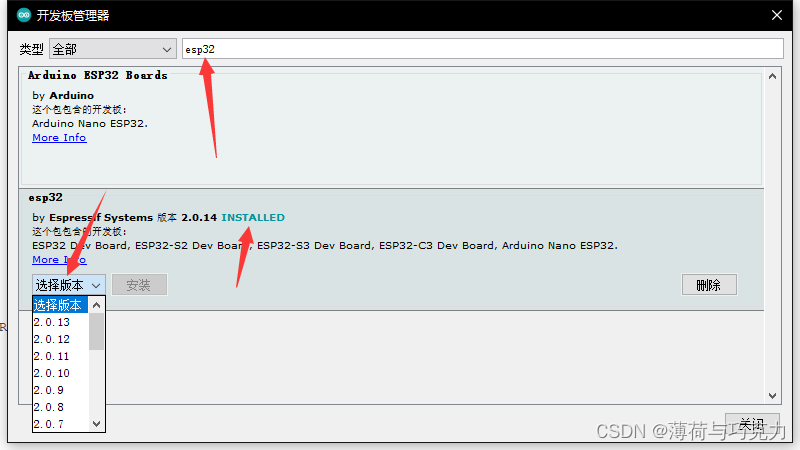

        添加完后点击 工具 --> 开发板 --> 开发板管理 --> 输入esp32或esp8266，下载对应版本即可。由于下载的是github上的的项目，所以不使用魔法是下载不了的（用了魔法也不一定能下下来，下了一天都没下好），可以在下载失败时手动下载压缩包。或者这已经打包好的开发板资料

百度网盘-esp32/esp8266开发板资料

手动添加开发板  ---> 1.

​

​

        可以手动下载的github项目地址

​

1.3 手动下载开发板和库

        安装完开发板的可跳过

1.3.1 安装开发板：

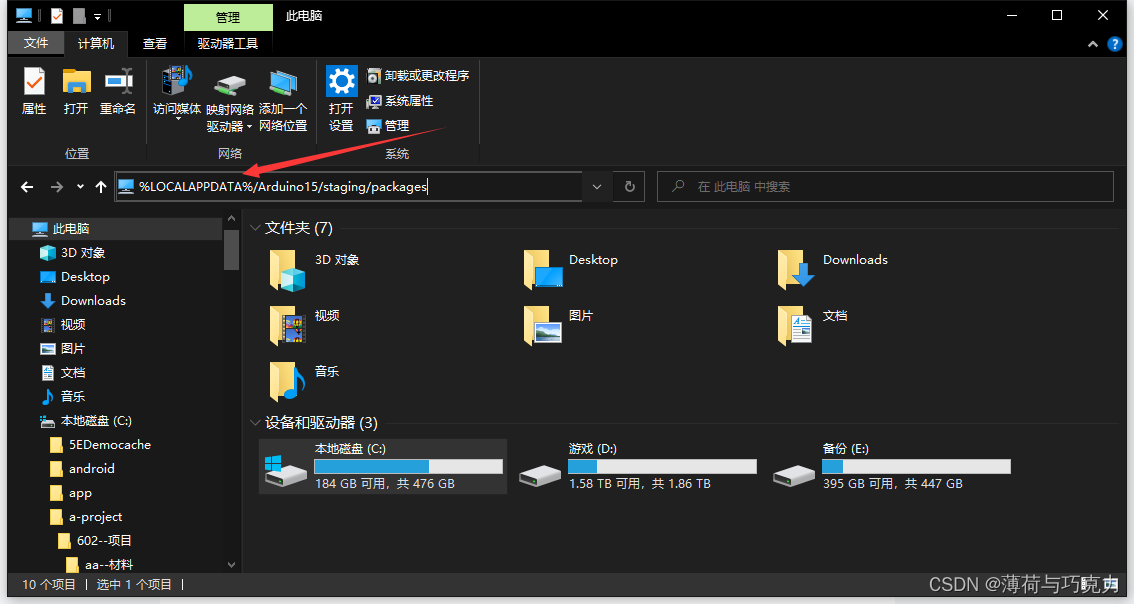

        在资源管理器中输入

%LOCALAPPDATA%/Arduino15/staging/packages

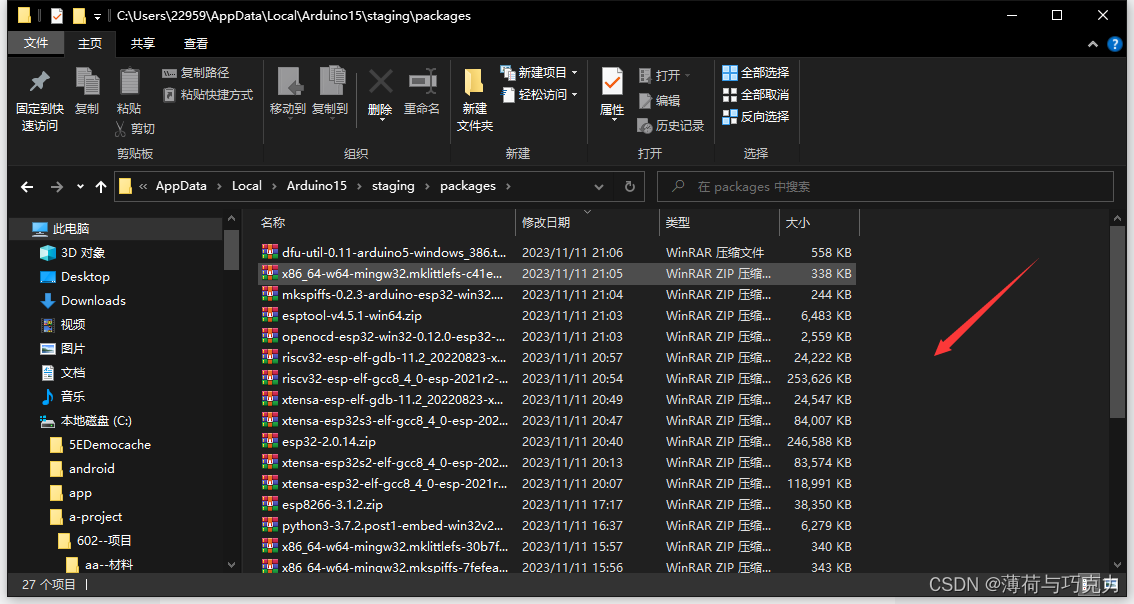

将所需的开发板压缩包全部复制到 %LOCALAPPDATA%/Arduino15/staging/packages文件夹下。放入后再回到 环境搭建的1.2下载开发板的安装开发板，就会安装好开发板。

        复制到该目录下

1.3.2 安装库

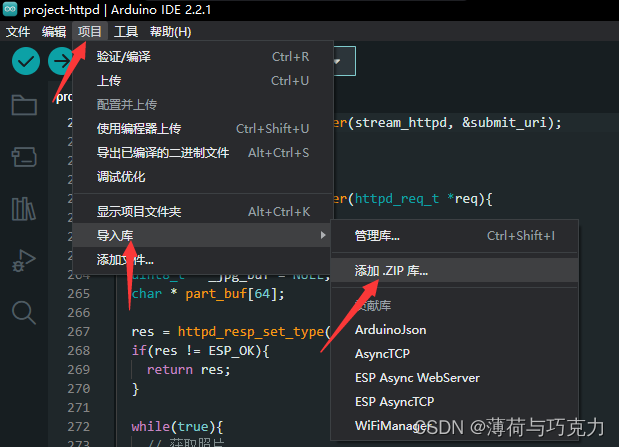

        点击 项目 -> 导入库 -> 添加.zip库 。 再添加相当于的库压缩包即可。

1.3.3 安装插件

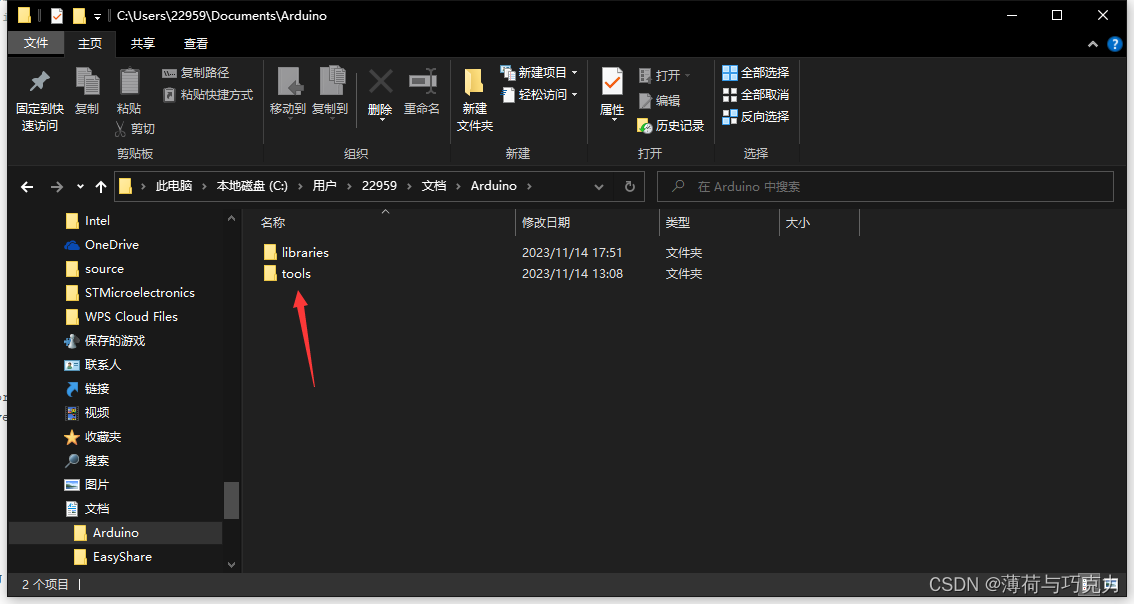

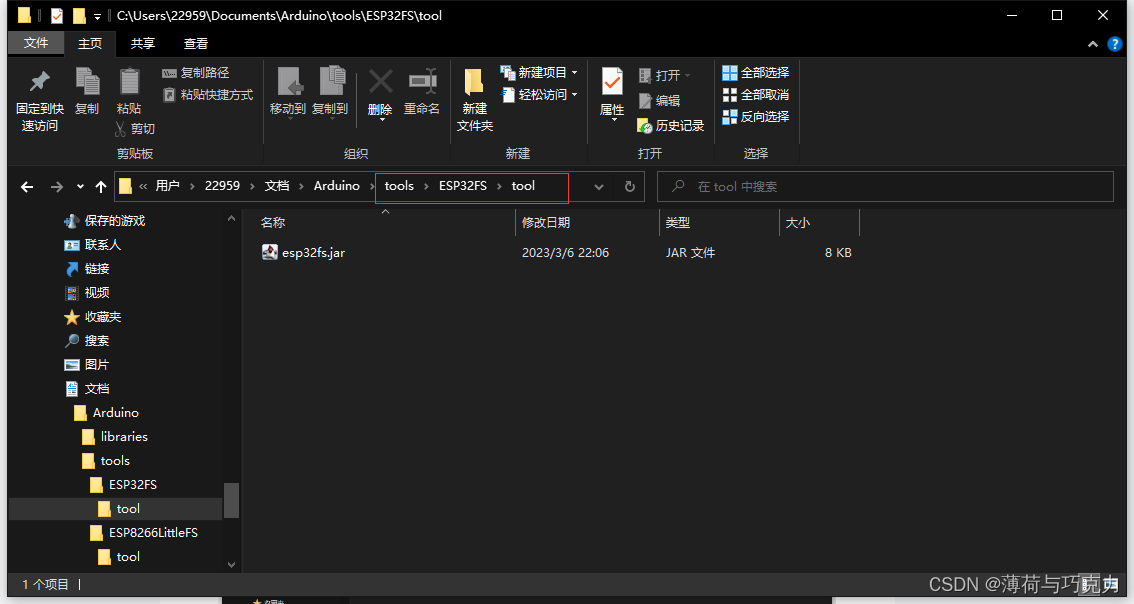

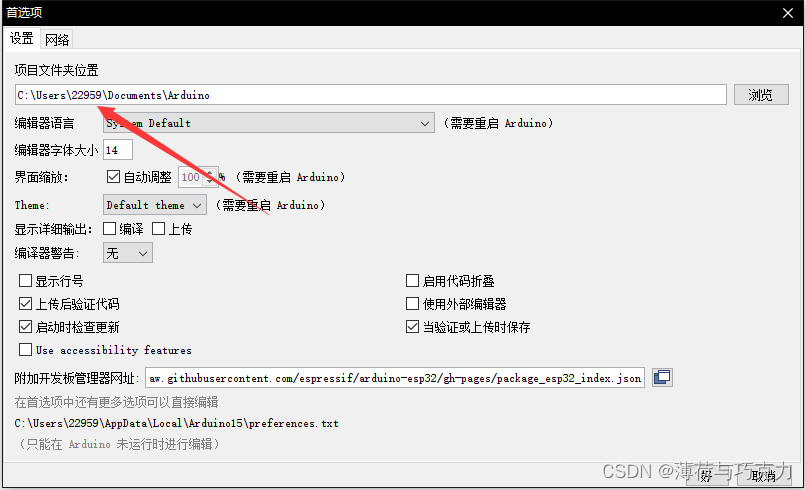

        到首选项中的项目文件夹位置下，进入或创建tools文件夹，再把插件的包解压到当前文件夹即可，最后的目录结构如图三

2、测试项目

        连接上esp32-cam模块。

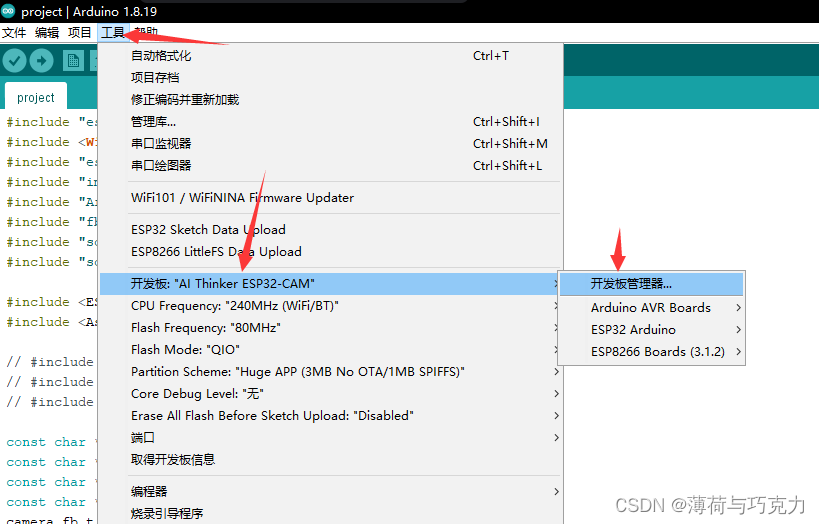

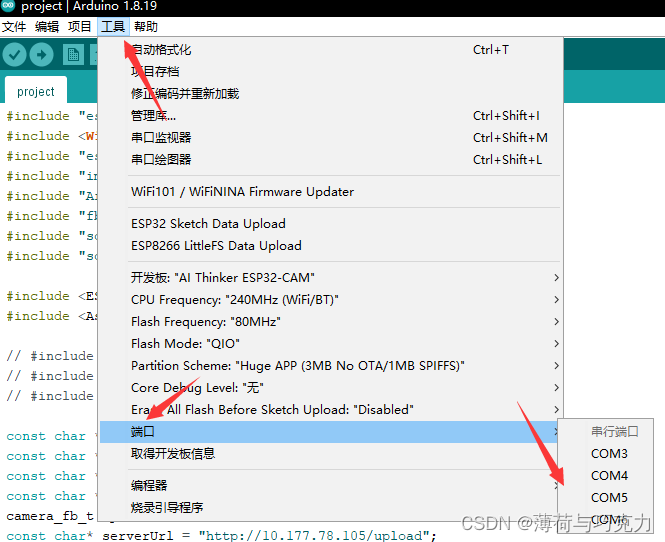

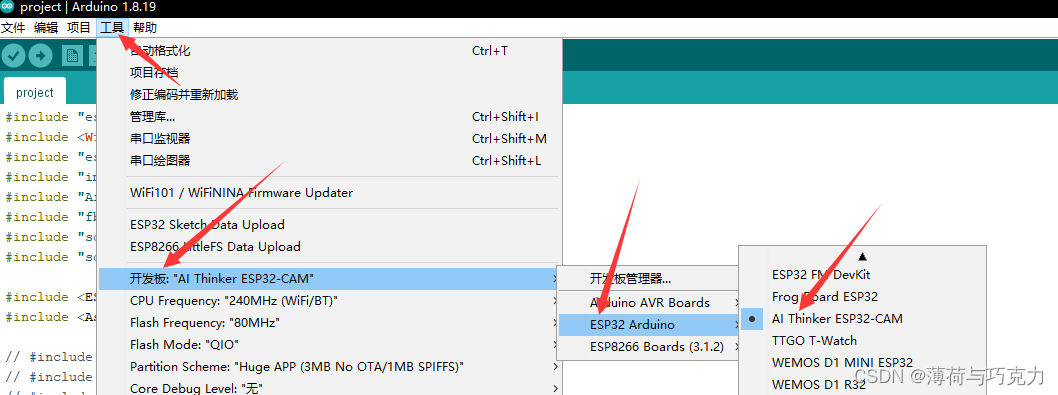

        点击 工具 -> 开发板 -> esp32/esp8266 -> 找到对应的开发板，选择好开发板后同样位置选择对应端口。

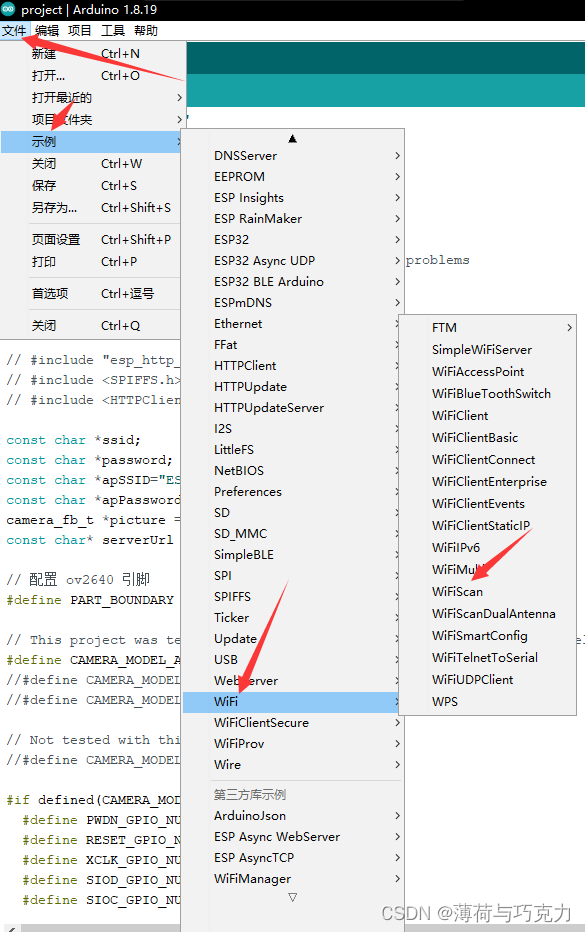

        选择一个测试示例。点击上传即可，等待编译上传结束。编译会有点慢。

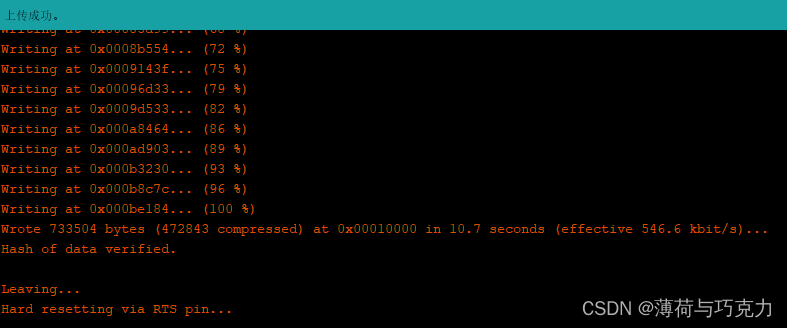

        上传完成即可。

3、正式项目

1、esp32-cam

1.1 代码

        说明：将esp32-cam模块设置为AP_STA模式，可以作为接入点或者站点。首先作为接入点。在esp32-cam模块启动时，通过手机等设备连接名为ESP-AP的网络；连接上网络后，访问默认ip：192.168.4.1，进入wifi管理页面进行esp32-cam模块的wifi连接，并指定照片所上传的服务器ip或域名。连接成功后跳转到连接成功页面，可以通过两个链接访问esp32-cam的视频流。

#include "esp_camera.h" #include  #include "esp_timer.h" #include "img_converters.h" #include "Arduino.h" #include "fb_gfx.h" #include "soc/soc.h" //disable brownout problems #include "soc/rtc_cntl_reg.h"  //disable brownout problems #include "esp_http_server.h" // #include  #include    const char *apSSID="ESP32-AP"; const char *apPassword=NULL; camera_fb_t *picture = NULL; String uploadUrl; String uploadPost = "/upload";   // 配置 ov2640 引脚 #define PART_BOUNDARY "123456789000000000000987654321"  // This project was tested with the AI Thinker Model, M5STACK PSRAM Model and M5STACK WITHOUT PSRAM #define CAMERA_MODEL_AI_THINKER //#define CAMERA_MODEL_M5STACK_PSRAM //#define CAMERA_MODEL_M5STACK_WITHOUT_PSRAM  // Not tested with this model //#define CAMERA_MODEL_WROVER_KIT  #if defined(CAMERA_MODEL_WROVER_KIT)   #define PWDN_GPIO_NUM    -1   #define RESET_GPIO_NUM   -1   #define XCLK_GPIO_NUM    21   #define SIOD_GPIO_NUM    26   #define SIOC_GPIO_NUM    27      #define Y9_GPIO_NUM      35   #define Y8_GPIO_NUM      34   #define Y7_GPIO_NUM      39   #define Y6_GPIO_NUM      36   #define Y5_GPIO_NUM      19   #define Y4_GPIO_NUM      18   #define Y3_GPIO_NUM       5   #define Y2_GPIO_NUM       4   #define VSYNC_GPIO_NUM   25   #define HREF_GPIO_NUM    23   #define PCLK_GPIO_NUM    22  #elif defined(CAMERA_MODEL_M5STACK_PSRAM)   #define PWDN_GPIO_NUM     -1   #define RESET_GPIO_NUM    15   #define XCLK_GPIO_NUM     27   #define SIOD_GPIO_NUM     25   #define SIOC_GPIO_NUM     23      #define Y9_GPIO_NUM       19   #define Y8_GPIO_NUM       36   #define Y7_GPIO_NUM       18   #define Y6_GPIO_NUM       39   #define Y5_GPIO_NUM        5   #define Y4_GPIO_NUM       34   #define Y3_GPIO_NUM       35   #define Y2_GPIO_NUM       32   #define VSYNC_GPIO_NUM    22   #define HREF_GPIO_NUM     26   #define PCLK_GPIO_NUM     21  #elif defined(CAMERA_MODEL_M5STACK_WITHOUT_PSRAM)   #define PWDN_GPIO_NUM     -1   #define RESET_GPIO_NUM    15   #define XCLK_GPIO_NUM     27   #define SIOD_GPIO_NUM     25   #define SIOC_GPIO_NUM     23      #define Y9_GPIO_NUM       19   #define Y8_GPIO_NUM       36   #define Y7_GPIO_NUM       18   #define Y6_GPIO_NUM       39   #define Y5_GPIO_NUM        5   #define Y4_GPIO_NUM       34   #define Y3_GPIO_NUM       35   #define Y2_GPIO_NUM       17   #define VSYNC_GPIO_NUM    22   #define HREF_GPIO_NUM     26   #define PCLK_GPIO_NUM     21  #elif defined(CAMERA_MODEL_AI_THINKER)   #define PWDN_GPIO_NUM     32   #define RESET_GPIO_NUM    -1   #define XCLK_GPIO_NUM      0   #define SIOD_GPIO_NUM     26   #define SIOC_GPIO_NUM     27      #define Y9_GPIO_NUM       35   #define Y8_GPIO_NUM       34   #define Y7_GPIO_NUM       39   #define Y6_GPIO_NUM       36   #define Y5_GPIO_NUM       21   #define Y4_GPIO_NUM       19   #define Y3_GPIO_NUM       18   #define Y2_GPIO_NUM        5   #define VSYNC_GPIO_NUM    25   #define HREF_GPIO_NUM     23   #define PCLK_GPIO_NUM     22 #else   #error "Camera model not selected" #endif  static const char* _STREAM_CONTENT_TYPE = "multipart/x-mixed-replace;boundary=" PART_BOUNDARY; static const char* _STREAM_BOUNDARY = "\r\n--" PART_BOUNDARY "\r\n"; static const char* _STREAM_PART = "Content-Type: image/jpeg\r\nContent-Length: %u\r\n\r\n";  httpd_handle_t stream_httpd = NULL;  // 函数声明 void startCameraServer(); int WiFiStart(); void capture(); static esp_err_t video_handler(httpd_req_t *req); static esp_err_t home_handler(httpd_req_t *req); static esp_err_t submit_handler(httpd_req_t *req);  const int ledPin = 4;  void setup() { //  禁用brownout检测器，电压不稳定时更容易收到电压波动影响   WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);    pinMode(ledPin, OUTPUT);      Serial.begin(115200); // 调试输出关闭，避免干扰程序运行   Serial.setDebugOutput(false);  // cam初始化   // cam初始化   camera_config_t config;   config.ledc_channel = LEDC_CHANNEL_0;   config.ledc_timer = LEDC_TIMER_0;   config.pin_d0 = Y2_GPIO_NUM;   config.pin_d1 = Y3_GPIO_NUM;   config.pin_d2 = Y4_GPIO_NUM;   config.pin_d3 = Y5_GPIO_NUM;   config.pin_d4 = Y6_GPIO_NUM;   config.pin_d5 = Y7_GPIO_NUM;   config.pin_d6 = Y8_GPIO_NUM;   config.pin_d7 = Y9_GPIO_NUM;   config.pin_xclk = XCLK_GPIO_NUM;   config.pin_pclk = PCLK_GPIO_NUM;   config.pin_vsync = VSYNC_GPIO_NUM;   config.pin_href = HREF_GPIO_NUM;   config.pin_sscb_sda = SIOD_GPIO_NUM;   config.pin_sscb_scl = SIOC_GPIO_NUM;   config.pin_pwdn = PWDN_GPIO_NUM;   config.pin_reset = RESET_GPIO_NUM;   config.xclk_freq_hz = 20000000;   config.pixel_format = PIXFORMAT_JPEG;   // 如果有内存--分辨率调 quality   if(psramFound()){     // 1600 x 1200      // config.frame_size = FRAMESIZE_UXGA;     //  1280 x 1024     // config.frame_size = FRAMESIZE_SXGA;     // 1024x768     config.frame_size = FRAMESIZE_XGA;     config.jpeg_quality = 4;     config.fb_count = 2;   } else {     config.frame_size = FRAMESIZE_SVGA;     config.jpeg_quality = 60;     config.fb_count = 1;   }      // Camera init   esp_err_t err = esp_camera_init(&config);   if (err != ESP_OK) {     Serial.printf("Camera init failed with error 0x%x", err);     return;   }     // 设置为可发出可接入   WiFi.mode(WIFI_AP_STA);  //  设置热点信息   WiFi.softAP(apSSID,apPassword);         delay(2000);   Serial.print("AP IP Address: ");   Serial.println(WiFi.softAPIP());    startCameraServer();    }  void loop() {   // digitalWrite(ledPin, HIGH);   if(WiFi.status() == WL_CONNECTED){     capture();   }   delay(3000);    }  /* * 函数 */ void startCameraServer(){   httpd_config_t config = HTTPD_DEFAULT_CONFIG();   config.server_port = 80;    httpd_uri_t video_uri = {     .uri       = "/video",     .method    = HTTP_GET,     .handler   = video_handler,     .user_ctx  = NULL   };      httpd_uri_t home_uri = {     .uri      ="/",     .method   = HTTP_GET,     .handler  = home_handler,     .user_ctx =NULL    };    httpd_uri_t submit_uri = {     .uri      ="/submit",     .method   = HTTP_POST,     .handler  = submit_handler,     .user_ctx = NULL    };       //Serial.printf("Starting web server on port: '%d'\n", config.server_port);   if (httpd_start(&stream_httpd, &config) == ESP_OK) {     httpd_register_uri_handler(stream_httpd, &video_uri);     httpd_register_uri_handler(stream_httpd, &home_uri);     httpd_register_uri_handler(stream_httpd, &submit_uri);   } }  static esp_err_t video_handler(httpd_req_t *req){   camera_fb_t * fb = NULL;   esp_err_t res = ESP_OK;   size_t _jpg_buf_len = 0;   uint8_t * _jpg_buf = NULL;   char * part_buf[64];    res = httpd_resp_set_type(req, _STREAM_CONTENT_TYPE);   if(res != ESP_OK){     return res;   }    while(true){     // 获取照片     fb = esp_camera_fb_get();     if (!fb) {       Serial.println("Camera capture failed");       res = ESP_FAIL;     } else {       if(fb->width > 400){         if(fb->format != PIXFORMAT_JPEG){           bool jpeg_converted = frame2jpg(fb, 80, &_jpg_buf, &_jpg_buf_len);           esp_camera_fb_return(fb);           fb = NULL;           if(!jpeg_converted){             Serial.println("JPEG compression failed");             res = ESP_FAIL;           }         } else {           _jpg_buf_len = fb->len;           _jpg_buf = fb->buf;         }       }     }     if(res == ESP_OK){       size_t hlen = snprintf((char *)part_buf, 64, _STREAM_PART, _jpg_buf_len);       res = httpd_resp_send_chunk(req, (const char *)part_buf, hlen);     }     if(res == ESP_OK){       res = httpd_resp_send_chunk(req, (const char *)_jpg_buf, _jpg_buf_len);     }     if(res == ESP_OK){       res = httpd_resp_send_chunk(req, _STREAM_BOUNDARY, strlen(_STREAM_BOUNDARY));     }     if(fb){       esp_camera_fb_return(fb);       fb = NULL;       _jpg_buf = NULL;     } else if(_jpg_buf){       free(_jpg_buf);       _jpg_buf = NULL;     }     if(res != ESP_OK){       break;     }     //Serial.printf("MJPG: %uB\n",(uint32_t)(_jpg_buf_len));   }   return res; }  static esp_err_t home_handler(httpd_req_t *req){    // 设置请求头    httpd_resp_set_type(req,"text/html");     const char* indexHtml=""       "
ESP32 WiFi connect
"       "
"       "ssid:"       "
"       "password:"       "
"       "hostip:"       "

"       ""       ""       "
";         httpd_resp_send(req, indexHtml, strlen(indexHtml));         return ESP_OK;  }  static esp_err_t submit_handler(httpd_req_t *req){     char content[100];     // 获取的内容     if (httpd_req_recv(req, content, sizeof(content)) <= 0) {         httpd_resp_send_500(req);         return ESP_FAIL;     }      // 提取表单字段的值     // 这里出错     char ssid[64],password[64],hostip[64];          if (httpd_query_key_value(content, "ssid", ssid, sizeof(ssid)) != ESP_OK ||         httpd_query_key_value(content, "password", password, sizeof(password)) != ESP_OK ||         httpd_query_key_value(content, "hostip", hostip, sizeof(hostip)) != ESP_OK ) {         httpd_resp_send_500(req);         return ESP_FAIL;     }      // 注意wifi 连接的密码，可能会有莫名其妙的位出来，导致连接不上     ssid[sizeof(ssid) - 1] = '\0';     password[sizeof(password) - 1] = '\0';     hostip[sizeof(hostip) - 1] = '\0';          Serial.println("\nReceived SSID: " + String(ssid));     Serial.println("Received Password: " + String(password));     Serial.println("Received hostip: " + String(hostip));      uploadUrl = "http://" + String(hostip) + uploadPost;     int ret = WiFiStart(ssid,password);     if(ret == 0){         httpd_resp_set_type(req,"text/html");         const char* SuccessHtml = ""             "
ESP32 WiFi connected
"             "
ip:" + WiFi.localIP().toString() + "

AP ip:" + WiFi.softAPIP().toString() + "
";                  httpd_resp_send(req, ApIp.c_str(), strlen(ApIp.c_str()));     }          return ESP_OK; }  int WiFiStart(const char * ssid,const char* password){   int ret = -1;   Serial.print("ssid:");Serial.print(String(ssid));Serial.print("\tlen:");Serial.println(strlen(ssid));   Serial.print("password:");Serial.print(String(password));Serial.print("\tlen:");Serial.println(strlen(password));      WiFi.begin(String(ssid),String(password));   Serial.print("wait WiFi");   int temp=0;   while( WiFi.status() != WL_CONNECTED && temp <= 15){         delay(500);         Serial.print(". ");           temp++;   }   if(WiFi.status() == WL_CONNECTED){     Serial.print("WiFi ip:");     Serial.println(WiFi.localIP());     ret = 0;   }else{     Serial.println("WiFi connect false");   }   return ret; }    void capture(){   // 获取照片   picture = esp_camera_fb_get();     if(!picture) {     Serial.println("Camera capture failed");     return;   }      HTTPClient http;   Serial.println(uploadUrl.c_str());   // 发送HTTP POST请求   http.begin(uploadUrl.c_str());      http.addHeader("Content-Type", "image/jpeg");   int httpResponseCode = http.POST(picture->buf, picture->len);    // 处理服务器响应   if (httpResponseCode > 0) {       Serial.printf("HTTP Response code: %d\n", httpResponseCode);       // 在这里可以添加处理成功的逻辑   } else {       Serial.printf("HTTP POST failed, error: %s\n", http.errorToString(httpResponseCode).c_str());   }   esp_camera_fb_return(picture);   picture = NULL;   http.end();  }

1.2 效果图

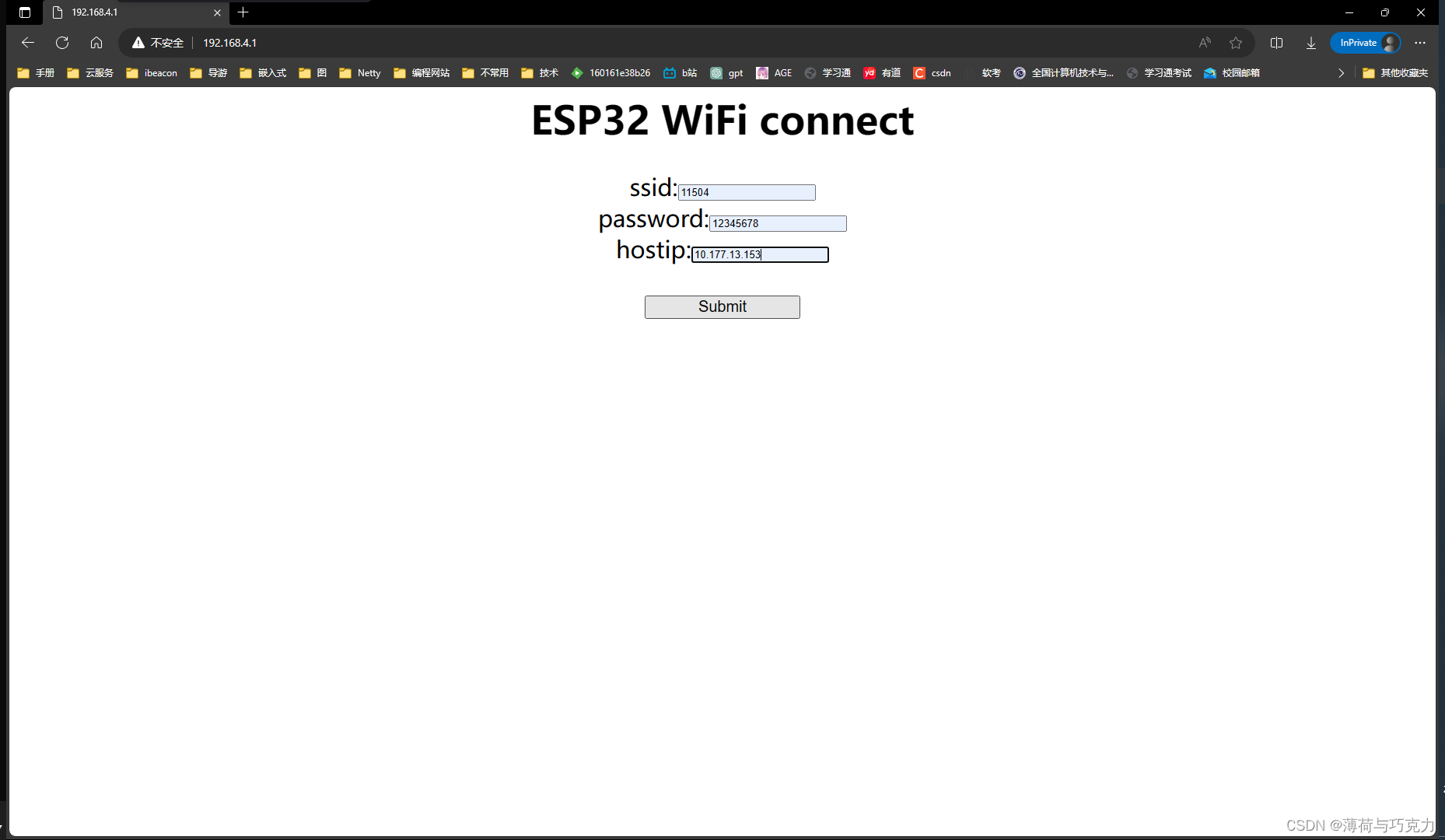

        wifi连接管理页面

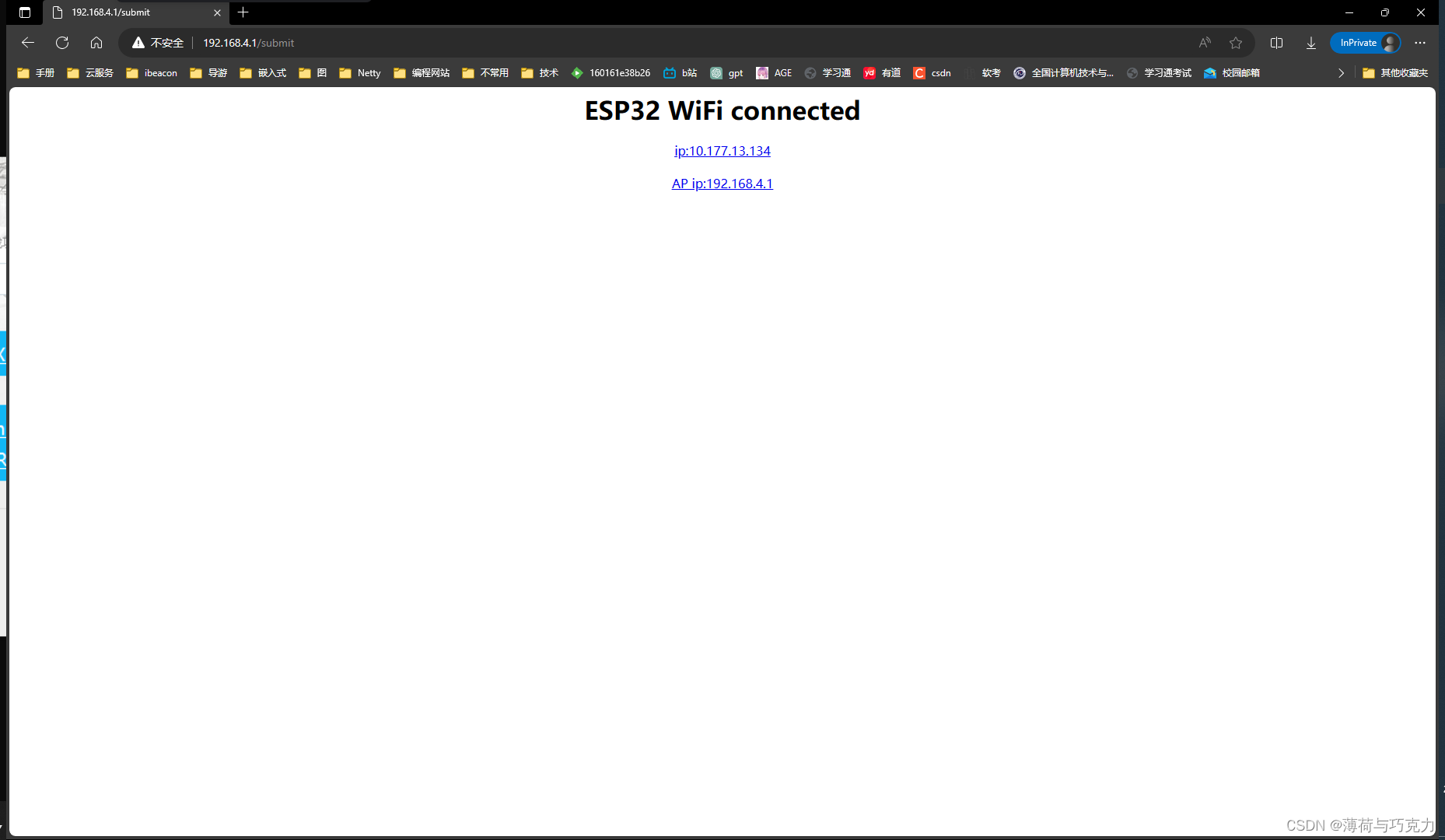

        wifi连接成功页面

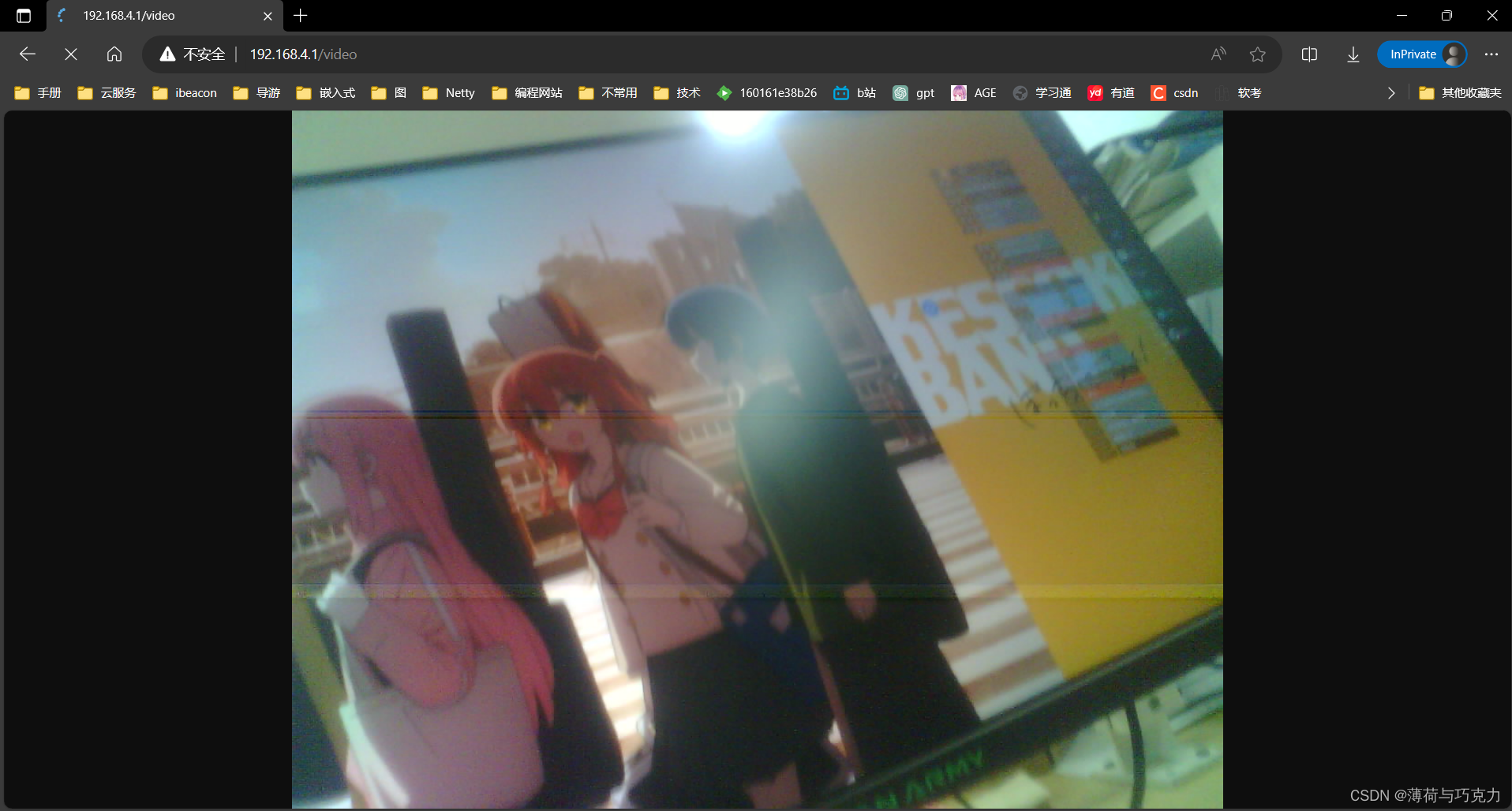

        视频流页面

2、web应用

2.1 代码

        后端写得比较简单，只有一个对数据库添加跟查询，把图片下载和存到数据库。

        百度网盘-web应用源码

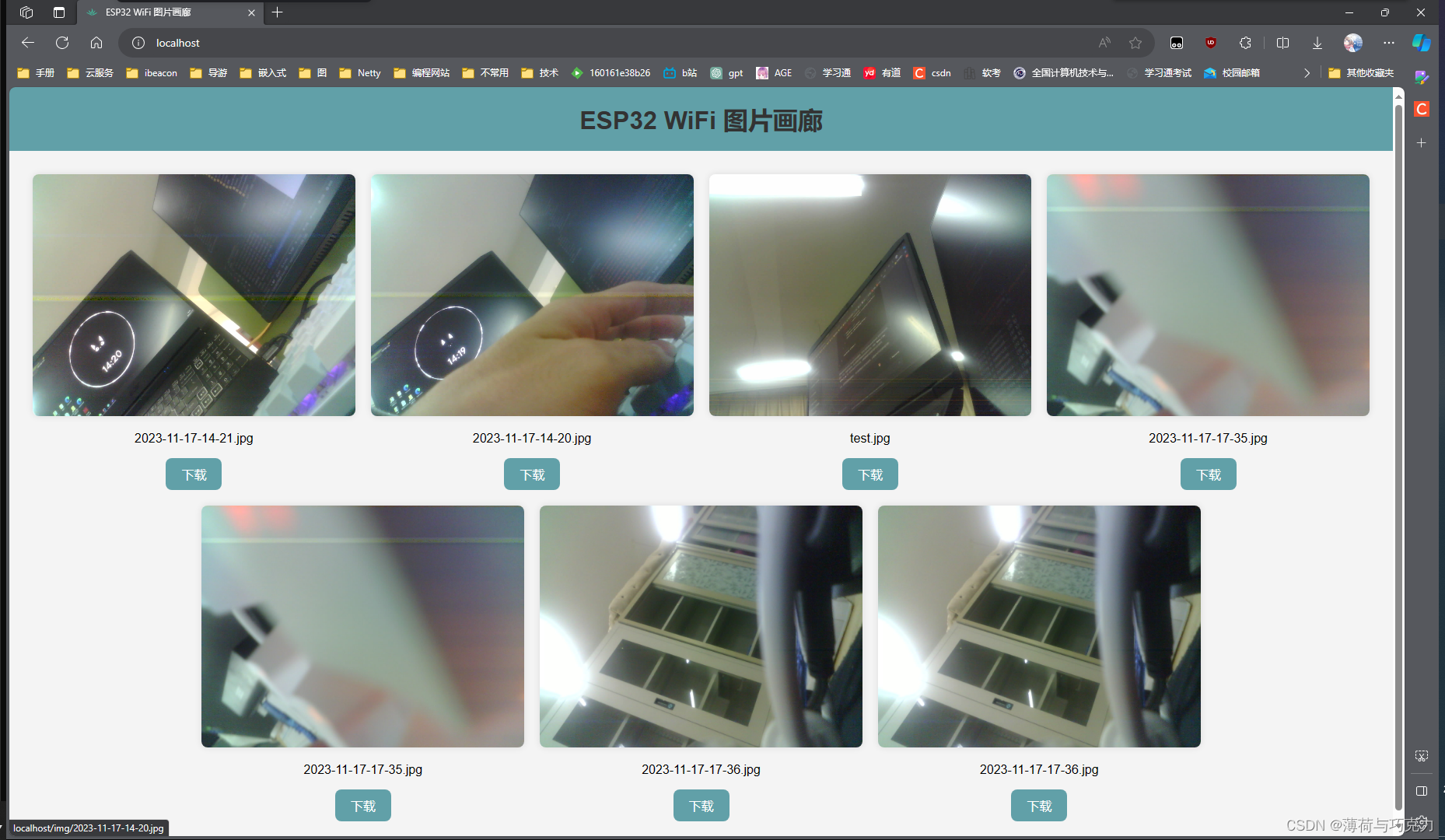

2.2 效果图

        前端比较简易，纯gpt问出来的。

问题

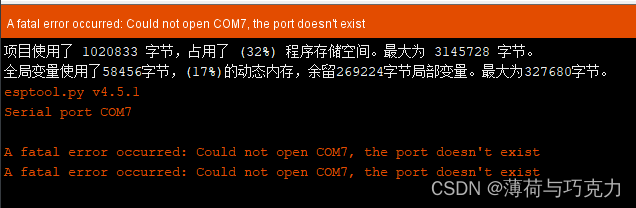

        1、上传失败：可能是端口正在被占用或者端口选择错误，请重新选择端口

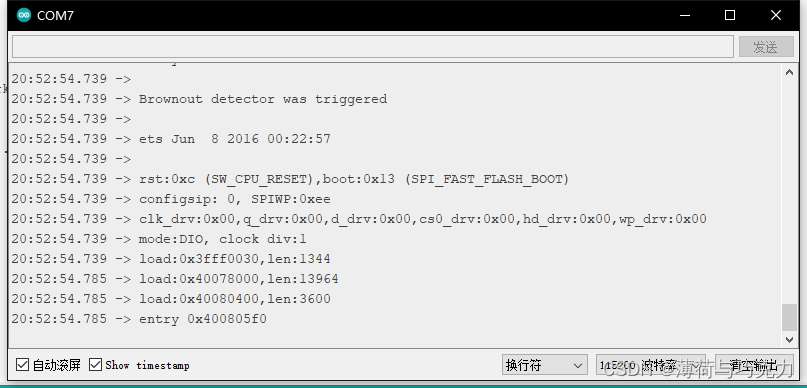

        2、串口输出 rst:0xc (SW_CPU_RESET),boot:0x13(SPI_FAST_FLASH_BOOT)

        因为某些原因导致模块重启rst
