本次实验背景:

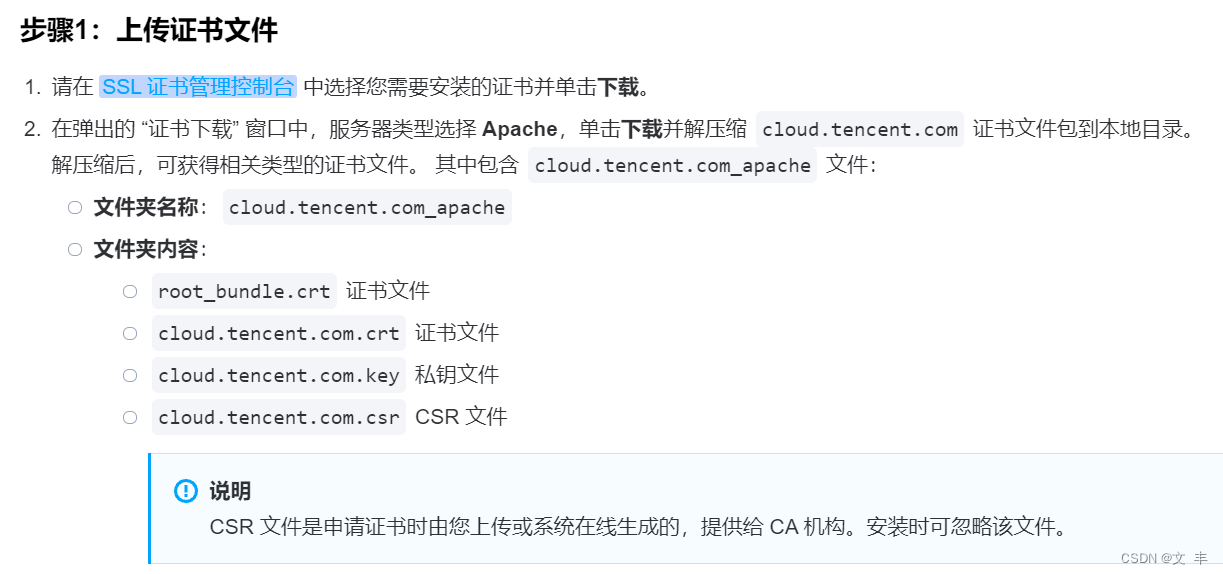

完全参考官方 https://cloud.tencent.com/document/product/400/4143 文档流程,没有搞定,于是写下避坑之作。
服务器:腾讯云轻量应用服务器
操作系统: Windows Server 2022 DataCenter 64bit CN
apache版本:Apache 2.4.59
#LoadModule ssl_module modules/mod_ssl.so #Include conf/extra/httpd-ssl.conf

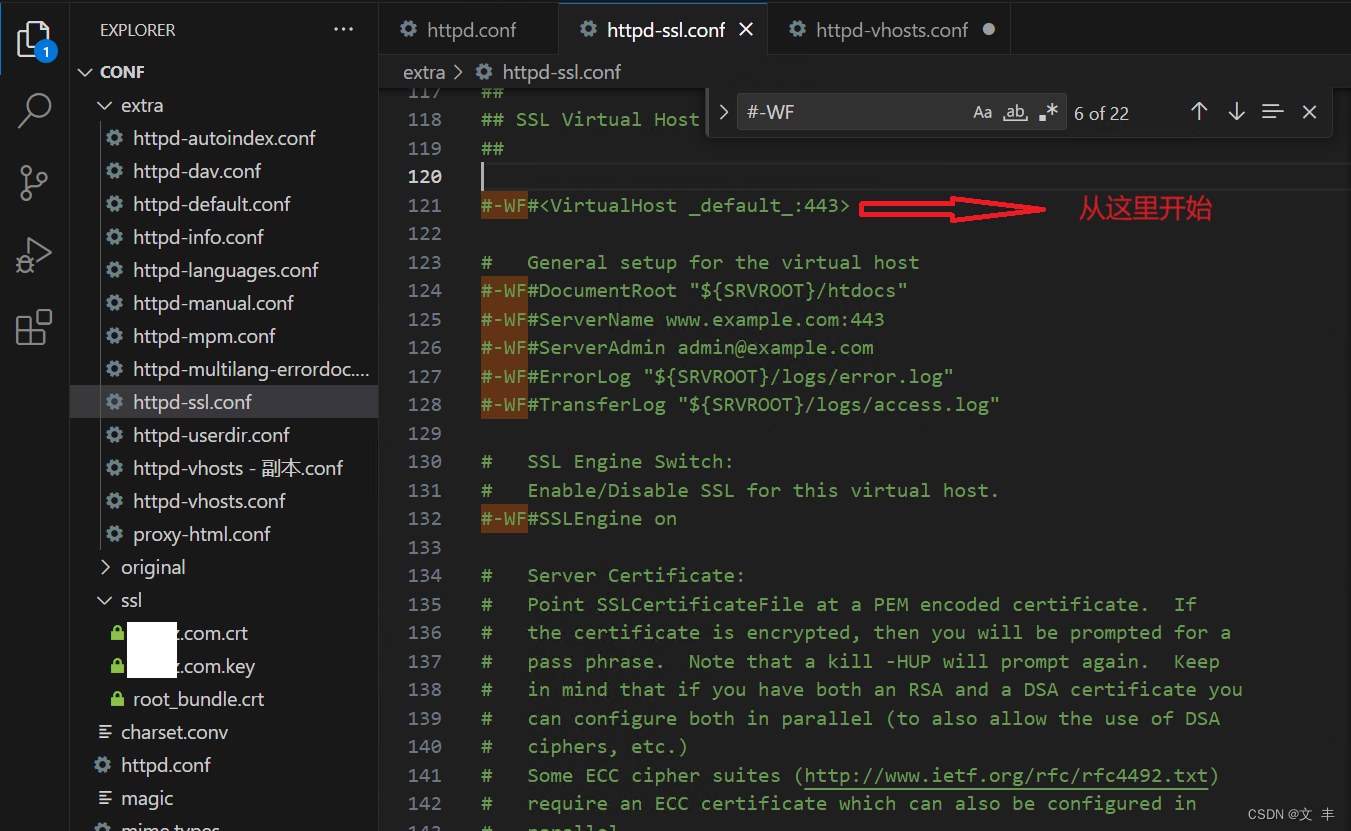

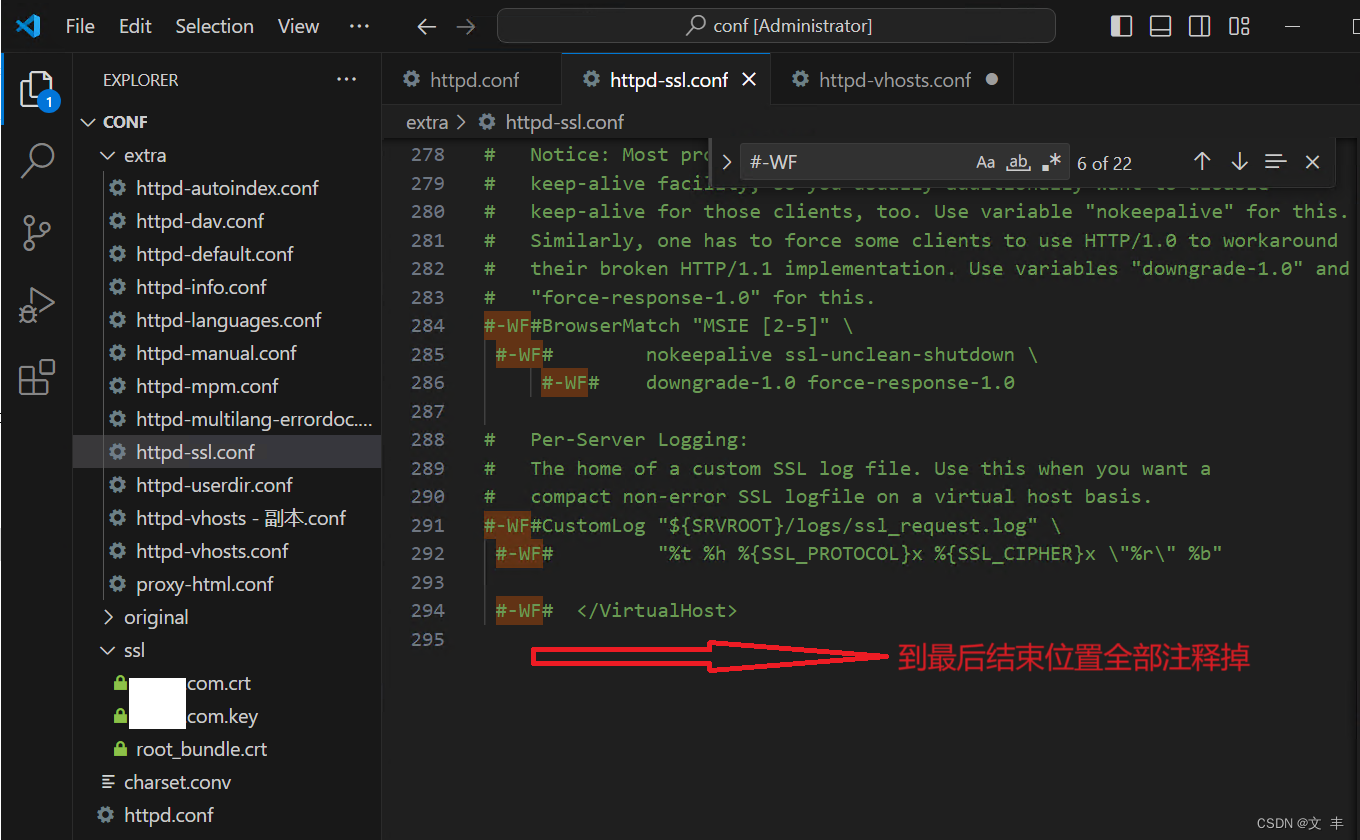

2. 将httpd-ssl.conf中虚拟机部分代码注释

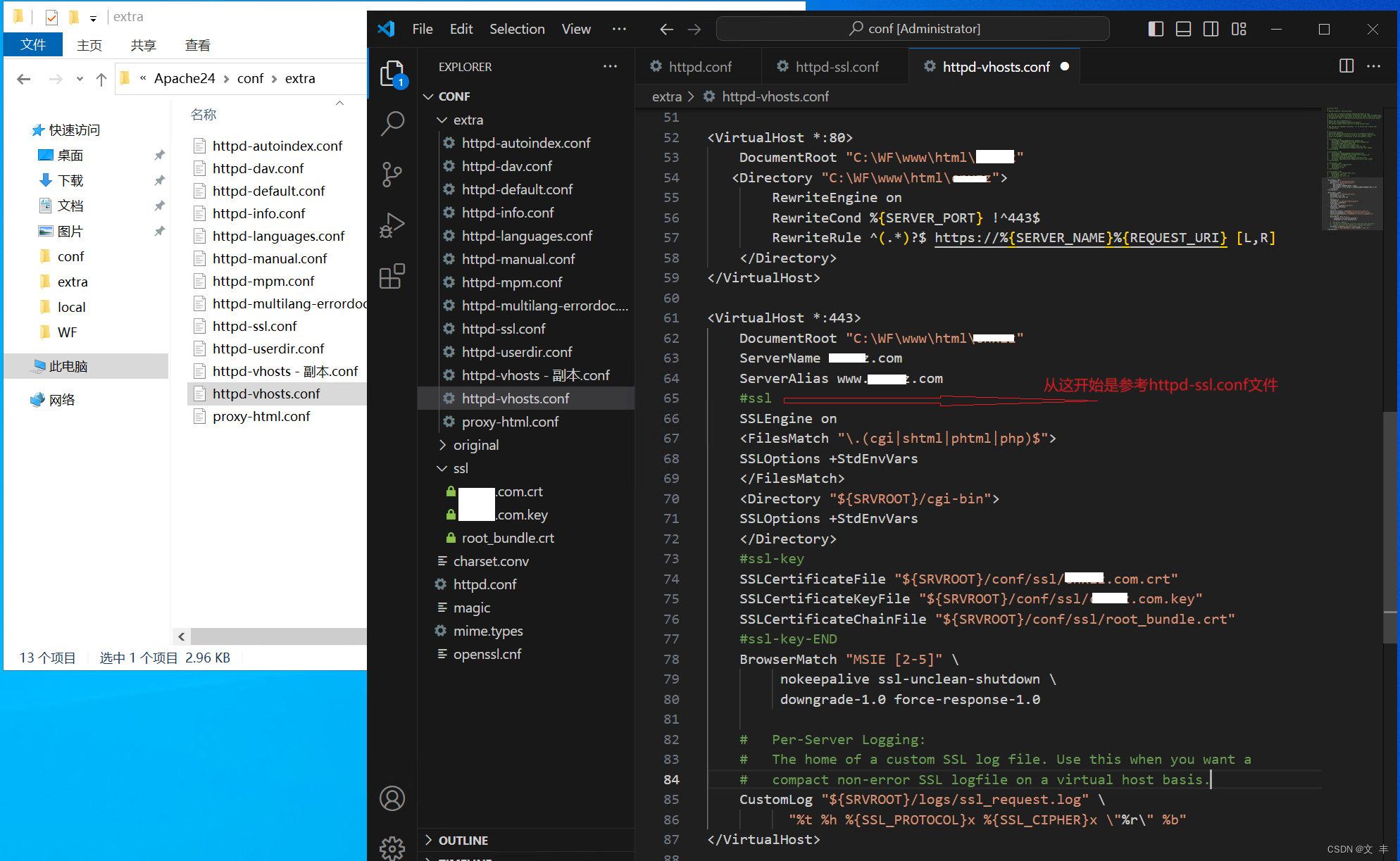

打开Apache24\conf\extra\目录,将httpd-vhosts.conf复制一份备份,清空httpd-vhosts.conf内容加入下面内容,*****包含作者真实域名信息,打了马赛克。

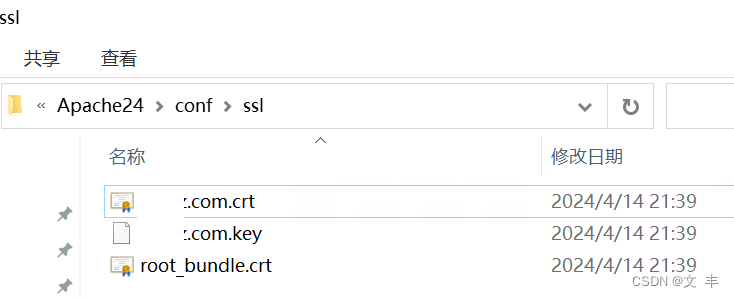

DocumentRoot "C:\WF\www\html\****" RewriteEngine on RewriteCond %{SERVER_PORT} !^443$ RewriteRule ^(.*)?$ https://%{SERVER_NAME}%{REQUEST_URI} [L,R] DocumentRoot "C:\WF\www\html\****" ServerName ****.com ServerAlias www.****.com #ssl SSLEngine on SSLOptions +StdEnvVars SSLOptions +StdEnvVars #ssl-key SSLCertificateFile "${SRVROOT}/conf/ssl/****.com.crt" SSLCertificateKeyFile "${SRVROOT}/conf/ssl/****.com.key" SSLCertificateChainFile "${SRVROOT}/conf/ssl/root_bundle.crt" #ssl-key-END BrowserMatch "MSIE [2-5]" \ nokeepalive ssl-unclean-shutdown \ downgrade-1.0 force-response-1.0 # Per-Server Logging: # The home of a custom SSL log file. Use this when you want a # compact non-error SSL logfile on a virtual host basis. CustomLog "${SRVROOT}/logs/ssl_request.log" \ "%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b"
net stop apache httpd -t net start apache
